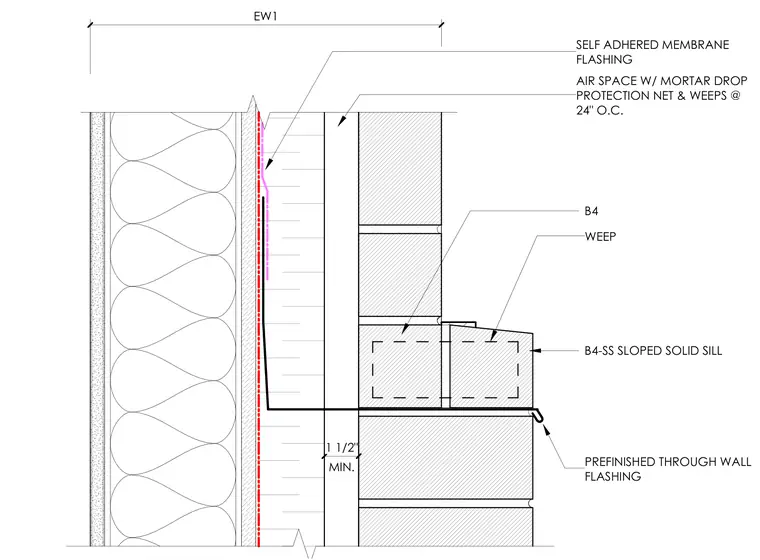

A brick masonry sill assembly incorporates a B4-SS sloped solid sill and a prefinished through-wall flashing integrated with a self-adhered membrane flashing. A minimum one-and-a-half-inch air space contains a mortar drop protection net and weep holes spaced at twenty-four inches on center.
EW1 B4-SS SLOPED SOLID SILL B4 PREFINISHED THROUGH WALL FLASHING SELF ADHERED MEMBRANE FLASHING MIN. 1 1/2" WEEP AIR SPACE W/ MORTAR DROP PROTECTION NET & WEEPS @ 24" O.C.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
