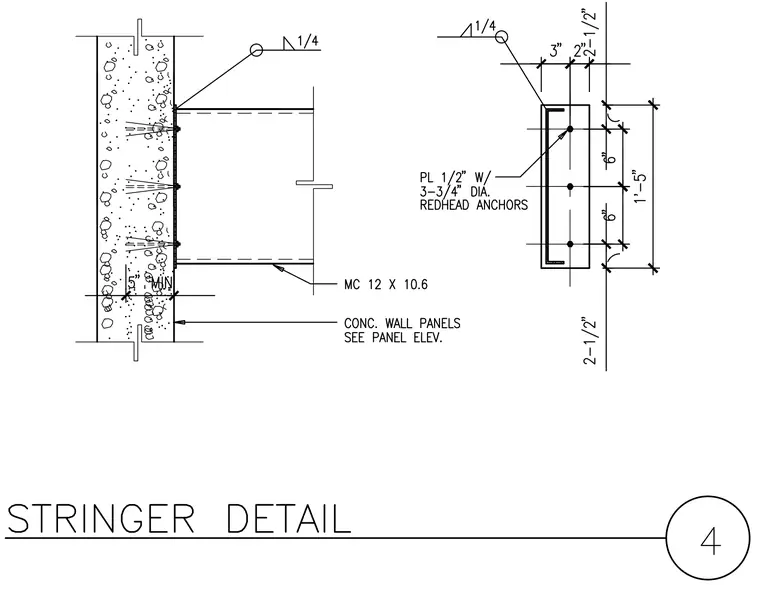

An MC 12 x 10.6 channel stringer connects to a precast concrete wall panel measuring five inches minimum thickness. The connection uses a half-inch thick steel plate secured to the wall with three three-quarter-inch diameter Red Head anchors. A one-quarter-inch fillet weld joins the channel stringer to the connection plate. The embedded plate measures one foot five inches in overall height with six-inch anchor spacings.
