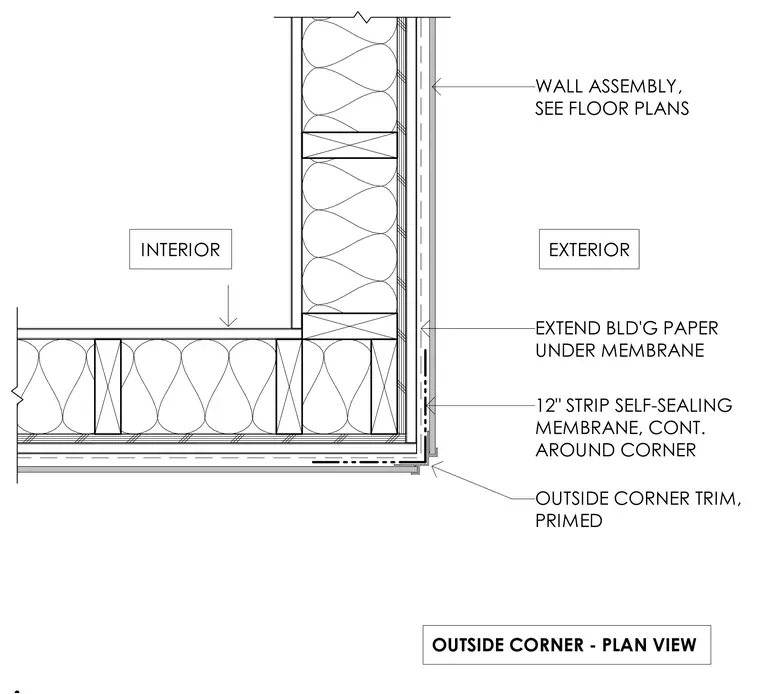

An exterior wall assembly plan detail shows a framed outside corner with wood studs and insulation. Building paper extends underneath a continuous twelve-inch strip of self-sealing membrane wrapped around the outside corner. A primed outside corner trim finishes the exterior junction.
WALL ASSEMBLY, SEE FLOOR PLANS EXTERIOR . INTERIOR OUTSIDE CORNER TRIM, PRIMED 12" STRIP SELF-SEALING MEMBRANE, CONT. AROUND CORNER EXTEND BLD'G PAPER UNDER MEMBRANE OUTSIDE CORNER - PLAN VIEW
