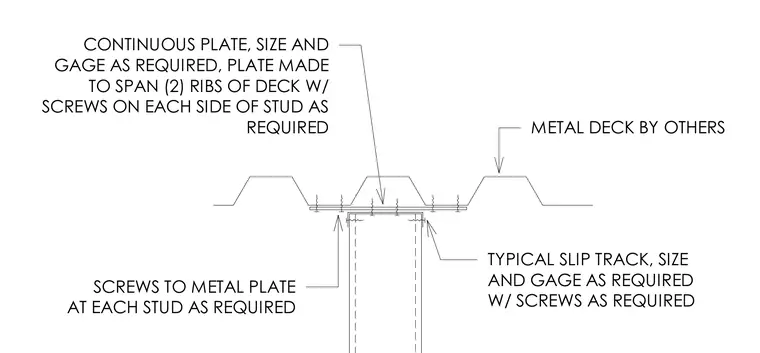

A cold-formed steel stud connects to a typical slip track sized as required with screws. A continuous metal plate spans two ribs of the metal deck above, secured with screws on each side of the stud. The metal deck itself is provided by others. Screws attach the top of the stud framing directly to the metal plate.
METAL DECK BY OTHERS TYPICAL SLIP TRACK, SIZE AND GAGE AS REQUIRED W/ SCREWS AS REQUIRED SCREWS TO METAL PLATE AT EACH STUD AS REQUIRED CONTINUOUS PLATE, SIZE AND GAGE AS REQUIRED, PLATE MADE TO SPAN (2) RIBS OF DECK W/ SCREWS ON EACH SIDE OF STUD AS REQUIRED
