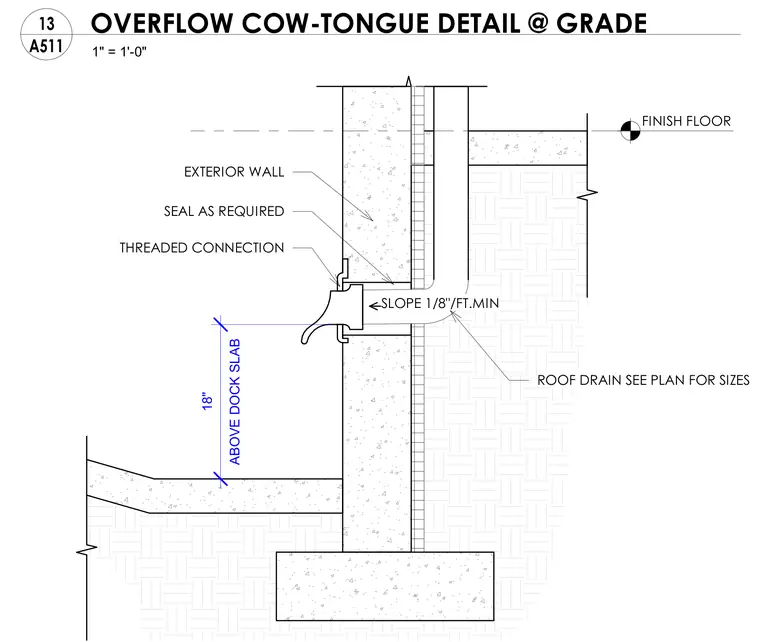

An overflow roof drain with a threaded connection penetrates the exterior wall assembly, terminating in a cow-tongue spout positioned eighteen inches above the dock slab. The drain pipe extends inward with a minimum slope of one-eighth inch per foot, sized per plan. Exterior wall sealant is applied around the drain penetration as required. The finish floor datum is indicated above.
ABOVE DOCK SLAB 18" SLOPE 1/8"/FT.MIN EXTERIOR WALL SEAL AS REQUIRED ROOF DRAIN SEE PLAN FOR SIZES THREADED CONNECTION FINISH FLOOR 1" = 1'-0" A511 13 OVERFLOW COW-TONGUE DETAIL @ GRADE
