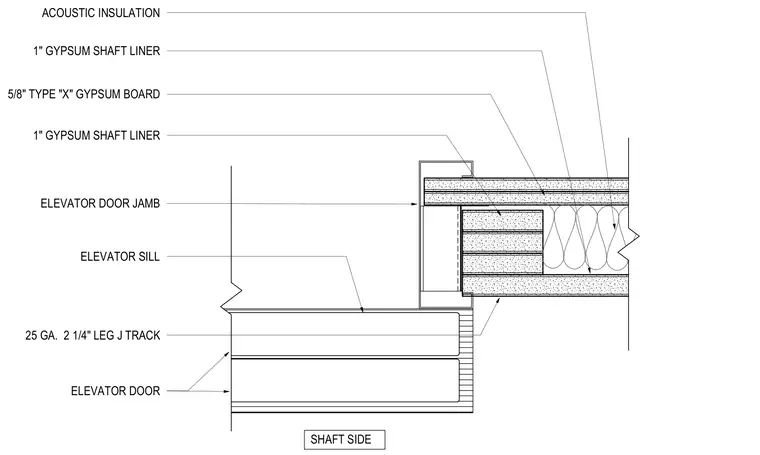

An elevator door jamb frames the opening adjacent to an elevator sill and sliding elevator door. The surrounding shaft wall consists of layers of one-inch gypsum shaft liner and five-eighths-inch Type X gypsum board over twenty-five gauge two-and-one-quarter-inch leg J tracks. Acoustic insulation fills the wall cavity on the shaft side.
5/8" TYPE "X" GYPSUM BOARD 1" GYPSUM SHAFT LINER 1" GYPSUM SHAFT LINER 25 GA. 2 1/4" LEG J TRACK ELEVATOR DOOR JAMB ELEVATOR DOOR ELEVATOR SILL SHAFT SIDE ACOUSTIC INSULATION
