A 6-inch diameter steel pipe bollard is embedded in an 18-inch diameter concrete footing set into compacted subgrade. A safety yellow plastic bollard cover encases the steel pipe, extending above the asphalt paving and finished floor elevation. Two 12-inch by 18-inch reserved parking signs mount back-to-back on the post with the bottom of the sign positioned at an elevation of 7 feet. Additional curbside pickup and help information signs mount on separate posts above. A 1/2-inch pre-molded joint filler with sealant separates the concrete footing from the surrounding crushed aggregate and asphalt layers.

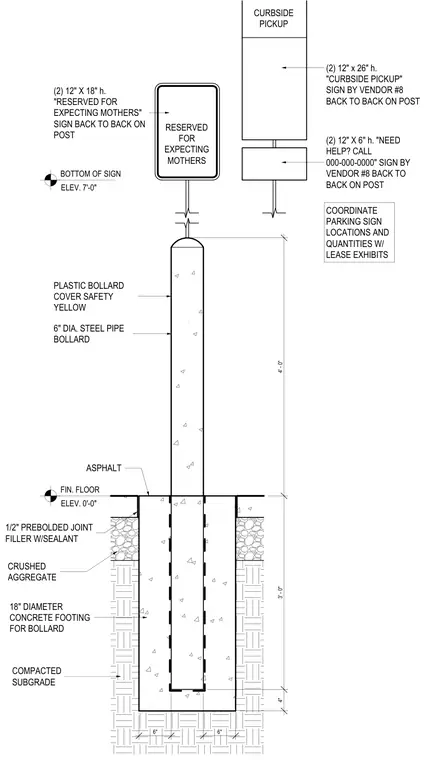

RESERVED FOR EXPECTING MOTHERS 6" 6" 4' - 0" 3' - 0" 4" CURBSIDE PICKUP (2) 12" x 26" h. "CURBSIDE PICKUP" SIGN BY VENDOR #8 BACK TO BACK ON POST (2) 12" X 6" h. "NEED HELP? CALL 000-000-0000" SIGN BY VENDOR #8 BACK TO BACK ON POST COORDINATE PARKING SIGN LOCATIONS AND QUANTITIES W/ LEASE EXHIBITS (2) 12" X 18" h. "RESERVED FOR EXPECTING MOTHERS" SIGN BACK TO BACK ON POST PLASTIC BOLLARD COVER SAFETY YELLOW 6" DIA. STEEL PIPE BOLLARD ASPHALT BOTTOM OF SIGN ELEV. 7'-0" FIN. FLOOR ELEV. 0'-0" 1/2" PREBOLDED JOINT FILLER W/SEALANT CRUSHED AGGREGATE 18" DIAMETER CONCRETE FOOTING FOR BOLLARD COMPACTED SUBGRADE
