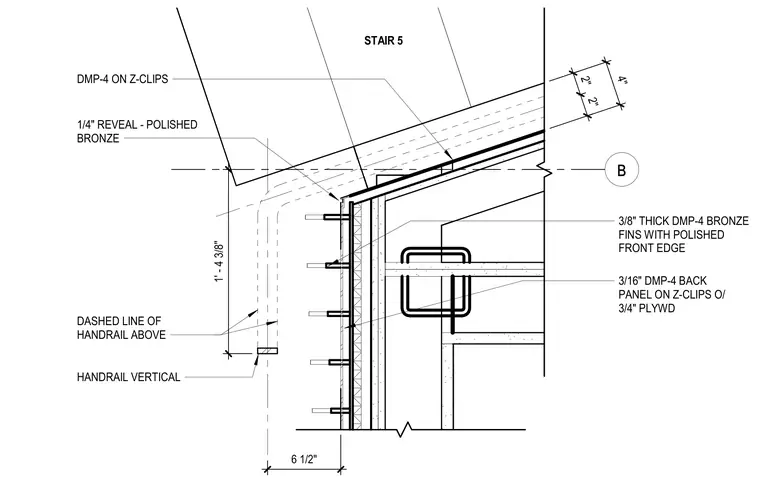

This plan detail shows decorative architectural finishes at a reception stair enclosure. A three-eighths-inch-thick DMP-4 bronze fin with a polished front edge intersects with a three-sixteenths-inch DMP-4 back panel mounted on Z-clips over three-quarters-inch plywood. A one-quarter-inch polished bronze reveal accents the junction. A polished bronze handrail with vertical supports is positioned adjacent to Stair 5, with dashed overhead lines indicating the handrail above.
B 4 " 2 " 2 " 1 ' - 4 3 / 8 " 6 1 / 2 " DMP-4 ON Z-CLIPS STAIR 5 1/4" REVEAL - POLISHED BRONZE HANDRAIL VERTICAL DASHED LINE OF HANDRAIL ABOVE 3/8" THICK DMP-4 BRONZE FINS WITH POLISHED FRONT EDGE 3/16" DMP-4 BACK PANEL ON Z-CLIPS O/ 3/4" PLYWD
