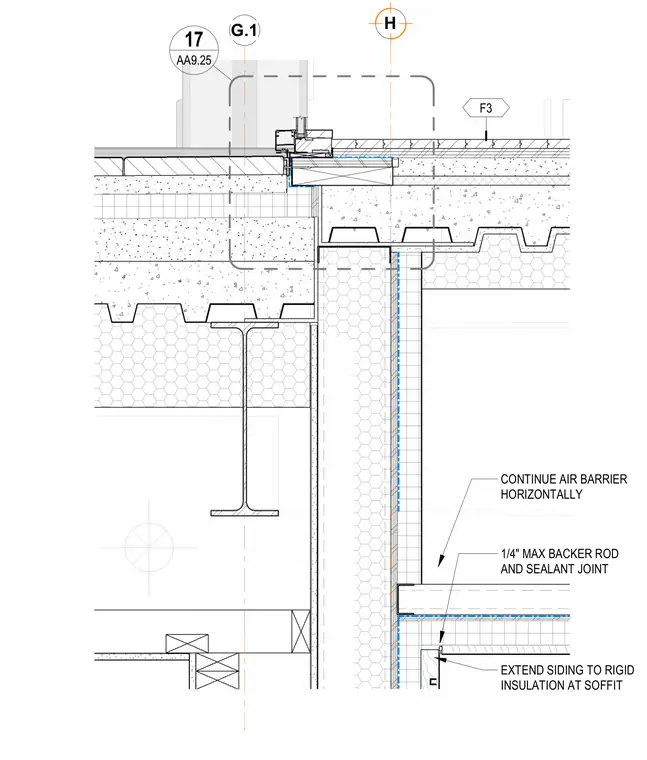

An exterior balcony threshold bears directly onto a concrete slab and steel framing assembly with continuous rigid insulation along the exterior wall. The air barrier continues horizontally across the assembly behind the exterior finish. A sealant joint with a one-quarter-inch maximum backer rod is provided at the juncture. Exterior siding extends to meet the rigid insulation at the adjacent soffit.
H G.1 F3 EXTEND SIDING TO RIGID INSULATION AT SOFFIT 1/4" MAX BACKER ROD AND SEALANT JOINT CONTINUE AIR BARRIER HORIZONTALLY AA9.25 17
