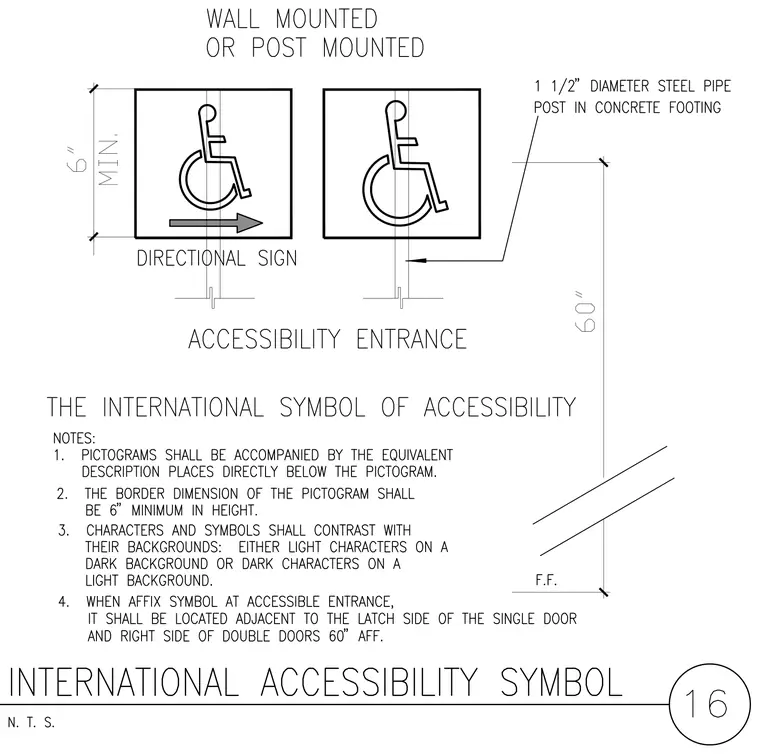

Accessibility signage details showing the International Symbol of Accessibility for wall mounted or post mounted configurations. The sign assembly includes a 6-inch minimum pictogram with a directional arrow for directional signs and accessibility entrances. The post mounted version utilizes a 1 1/2-inch diameter steel pipe post set in a concrete footing with the center of the sign positioned at 60 inches above finished floor. General notes specify pictogram dimensions, text accompaniment, contrast requirements, and mounting heights adjacent to the latch side of single doors or the right side of double doors.
