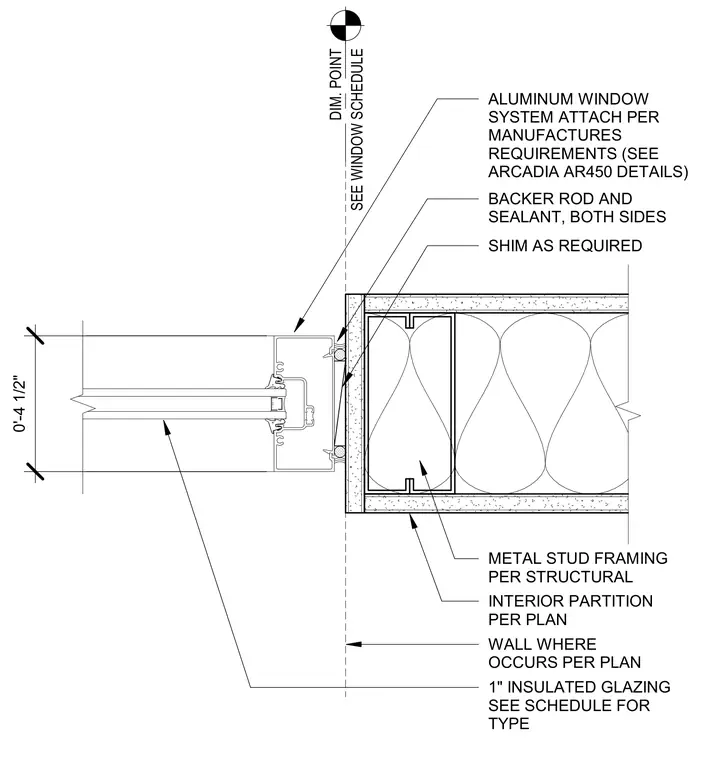

An aluminum window system attaches to a cold-formed metal stud framing partition using shims as required per manufacturer requirements. Backer rod and sealant are applied to both sides of the window frame junction against the interior partition finish. The storefront frame holds a 1-inch insulated glazing unit.
INTERIOR PARTITION PER PLAN BACKER ROD AND SEALANT, BOTH SIDES METAL STUD FRAMING PER STRUCTURAL SHIM AS REQUIRED ALUMINUM WINDOW SYSTEM ATTACH PER MANUFACTURES REQUIREMENTS (SEE ARCADIA AR450 DETAILS) SEE WINDOW SCHEDULE DIM. POINT 1" INSULATED GLAZING SEE SCHEDULE FOR TYPE 0'-4 1/2" WALL WHERE OCCURS PER PLAN
