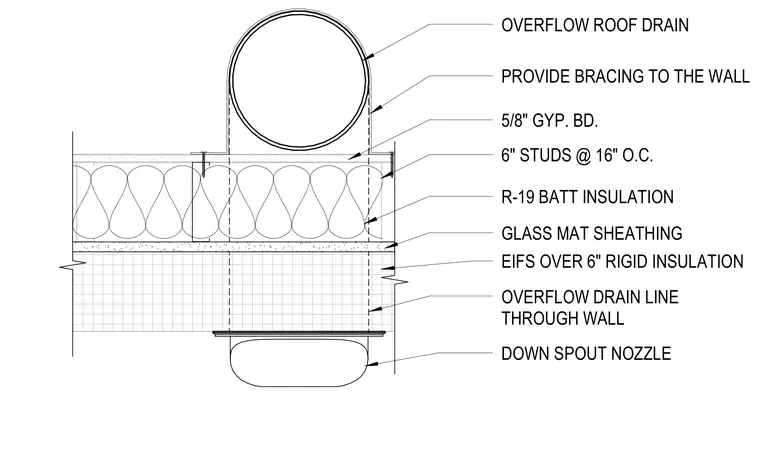

An overflow roof drain connects to an overflow drain line running through the exterior wall assembly and discharges through a downspout nozzle. The framed wall consists of six-inch studs spaced at sixteen inches on center with five-eighths-inch gypsum board on the interior and glass mat sheathing on the exterior. R-nineteen batt insulation fills the stud cavity, while the exterior finish incorporates EIFS over six-inch rigid insulation. Structural bracing is provided to secure the drain assembly within the wall framing.
OVERFLOW ROOF DRAIN PROVIDE BRACING TO THE WALL 5/8" GYP. BD. 6" STUDS @ 16" O.C. R-19 BATT INSULATION EIFS OVER 6" RIGID INSULATION DOWN SPOUT NOZZLE OVERFLOW DRAIN LINE THROUGH WALL GLASS MAT SHEATHING
