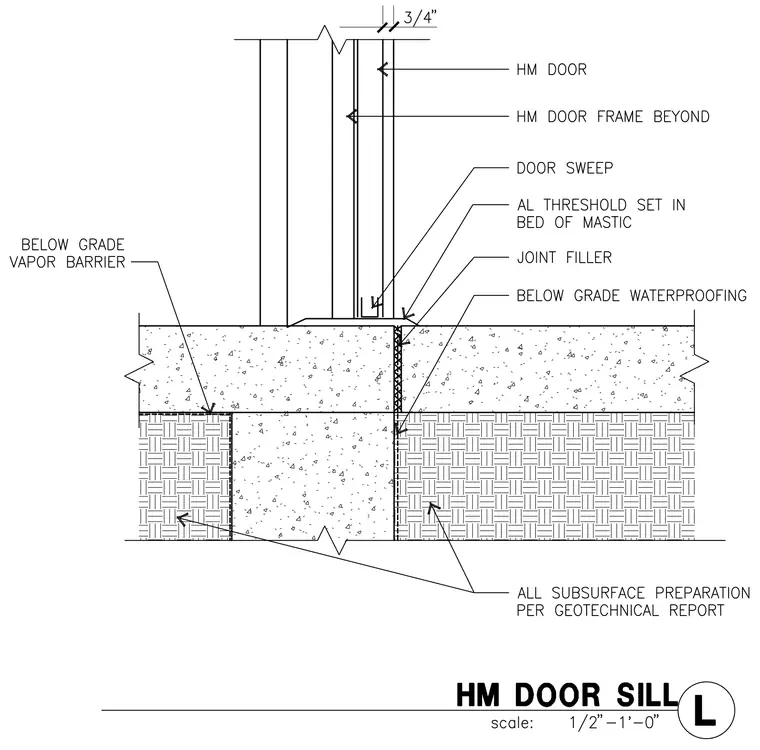

A hollow metal door sits above an aluminum threshold set in a bed of mastic over a concrete floor slab. A joint filler is placed at the slab edge adjacent to below-grade waterproofing. A below-grade vapor barrier extends beneath the slab over subsurface preparation built per the geotechnical report. A hollow metal door frame is positioned beyond the door leaf, with a three-quarter-inch dimension noted at the head.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
Start membership
