Louver Jamb at CMU Wall

Materials

Timber / Wood Masonry / CMU Metal (misc.)EIFS / Plaster / Stucco

Elements

About this detail

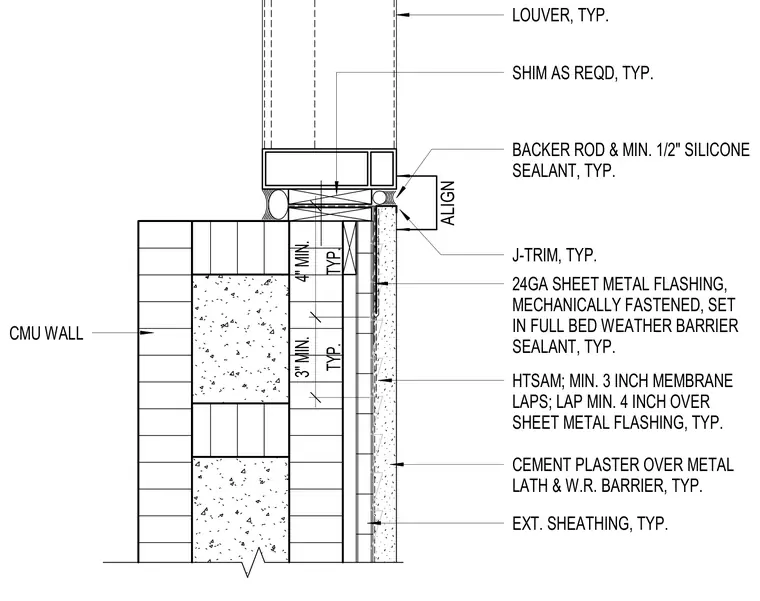

A louver jamb is installed adjacent to a concrete masonry unit wall with shims as required for proper alignment. A backer rod and a minimum one-half-inch silicone sealant seal the joint at the perimeter. A typical twenty-four gauge mechanically fastened sheet metal flashing is set in a full bed of weather barrier sealant. A weather-resistive membrane laps a minimum of three inches and extends a minimum of four inches over the sheet metal flashing. Cement plaster over metal lath and a weather-resistive barrier finish the exterior over exterior sheathing.
