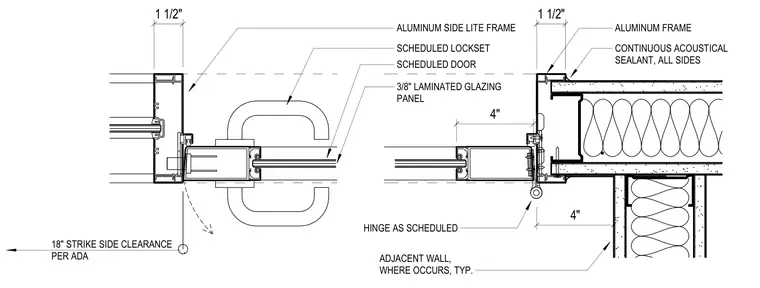

An aluminum frame supports a scheduled door and a 3/8-inch laminated glazing panel side lite. Continuous acoustical sealant is applied to all sides of the aluminum frame where it meets the adjacent wall. The assembly maintains an 18-inch strike side clearance per ADA guidelines and incorporates a scheduled lockset and hinge.
CONTINUOUS ACOUSTICAL SEALANT, ALL SIDES ALUMINUM FRAME HINGE AS SCHEDULED 18" STRIKE SIDE CLEARANCE PER ADA . ADJACENT WALL, WHERE OCCURS, TYP. SCHEDULED LOCKSET SCHEDULED DOOR 4" 4" 1 1/2" 1 1/2" ALUMINUM SIDE LITE FRAME 3/8" LAMINATED GLAZING PANEL
