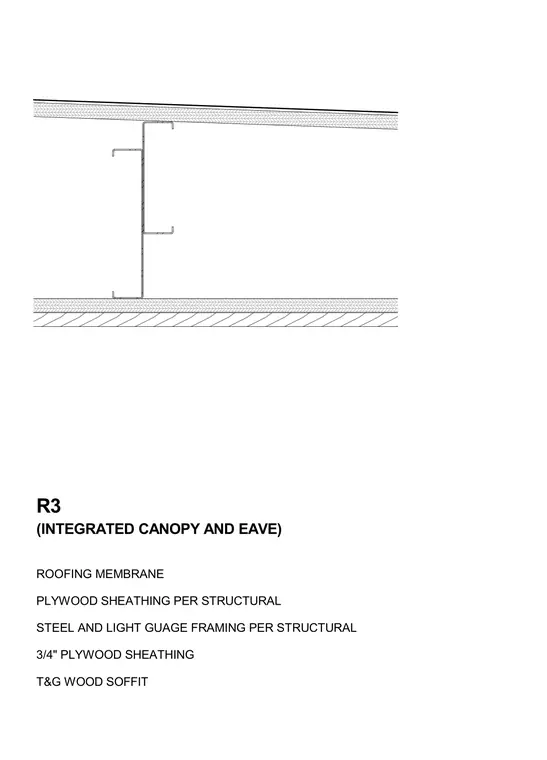

The detail illustrates a roof and ceiling assembly composed of a top roofing membrane, plywood sheathing, cold-formed steel framing members, 3/4-inch plywood sheathing, and a tongue-and-groove wood soffit below. The components are arranged to create an integrated eave and canopy structure. The assembly connects waterproofing elements with structural framing and finished wood soffit materials.
Text on the drawing
R3 ROOFING MEMBRANE PLYWOOD SHEATHING PER STRUCTURAL STEEL AND LIGHT GUAGE FRAMING PER STRUCTURAL 3/4" PLYWOOD SHEATHING T&G WOOD SOFFIT (INTEGRATED CANOPY AND EAVE)
