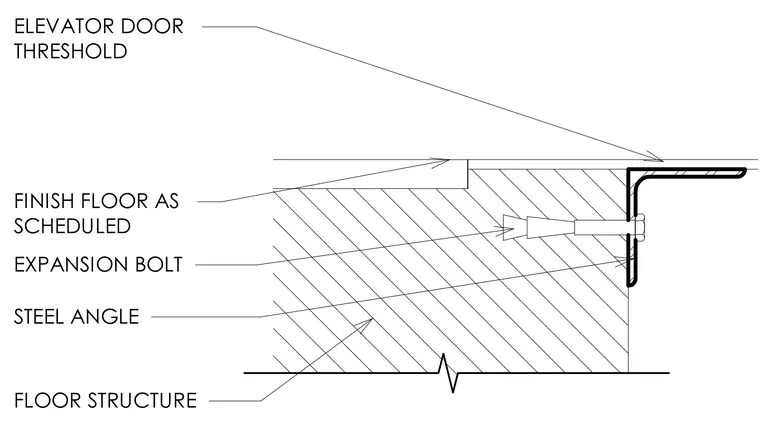

An elevator door threshold bears against a steel angle anchored to the edge of the floor structure. The steel angle is fastened to the concrete floor structure using expansion bolts. The finish floor material terminates at the threshold assembly as scheduled.
ELEVATOR DOOR THRESHOLD FINISH FLOOR AS SCHEDULED EXPANSION BOLT STEEL ANGLE FLOOR STRUCTURE
