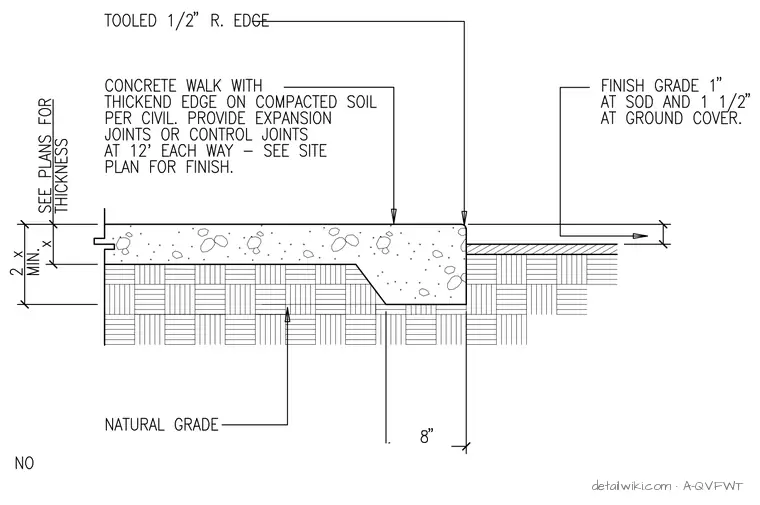

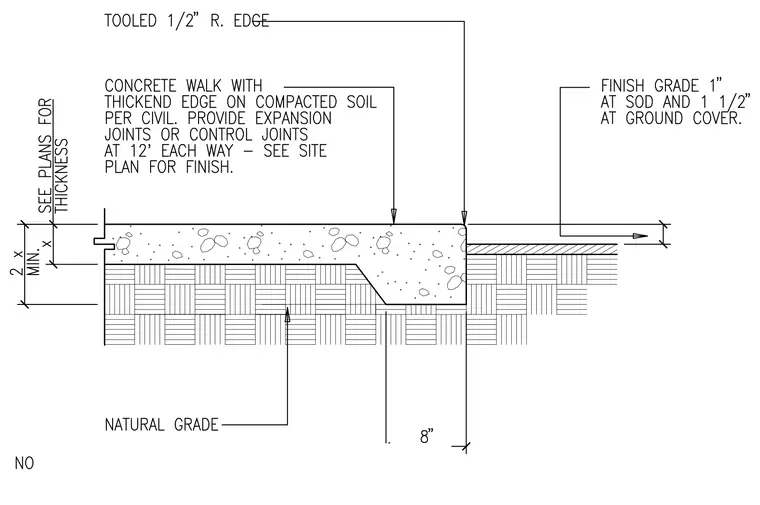

This concrete walk assembly features a thickened edge resting on compacted soil as specified by civil engineering requirements. The slab thickness is defined as x, with a minimum thickened edge depth of two times x. The exterior edge is finished with a one-half inch radius tooled edge. Expansion or control joints are required at twelve feet on center in each direction, with specific finish requirements referenced on the site plan. Adjacent finish grade is set at one inch below the top of the walk at sod areas and one and one-half inches below at ground cover areas.
