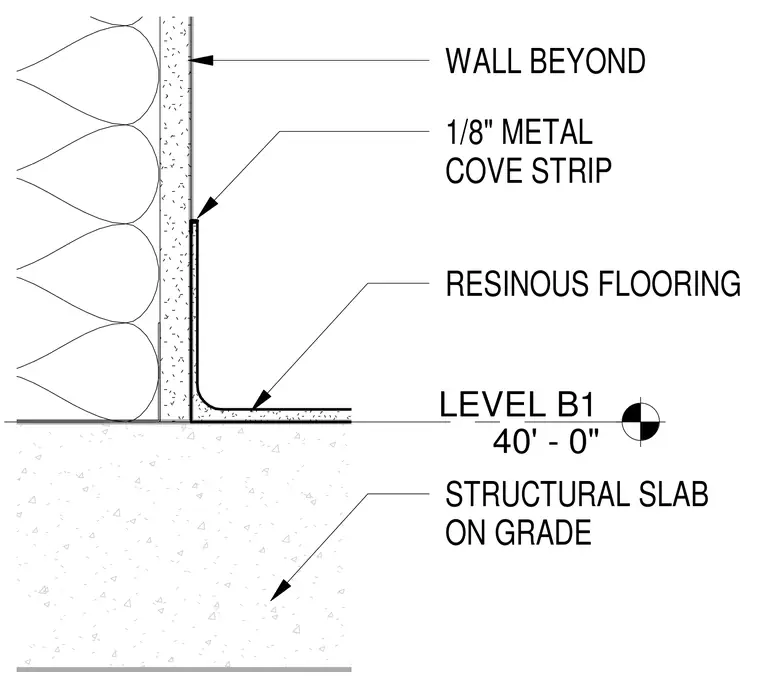

Resinous flooring extends across the structural slab on grade with an integrated 1/8 inch metal cove strip forming a sanitary base against the wall beyond at Level B1. The seamless flooring system turns up vertically along the wall face to create a clean, easily maintainable transition.
LEVEL B1 40' - 0" RESINOUS FLOORING STRUCTURAL SLAB ON GRADE WALL BEYOND 1/8" METAL COVE STRIP
