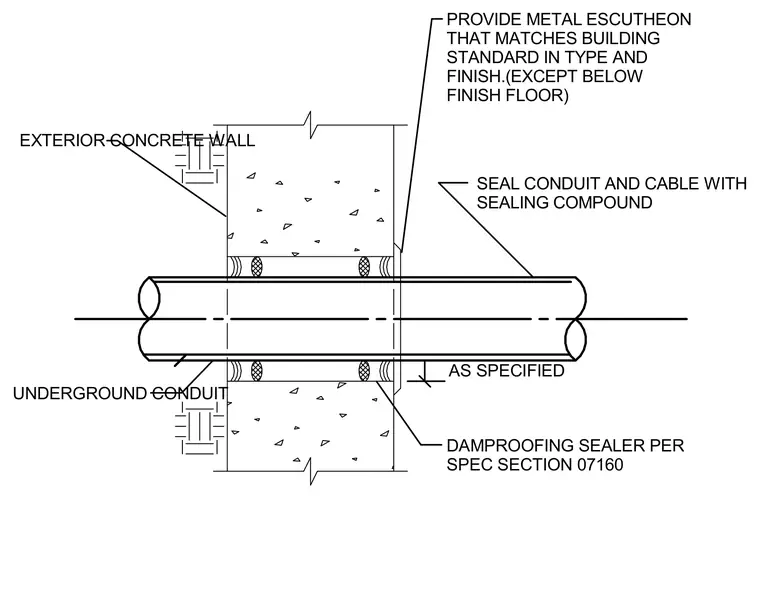

An underground conduit passes through an exterior concrete wall sealed with a dampproofing sealer per specification section 07160. The conduit and cable are packed and sealed within the opening using a sealing compound. A matching metal escutcheon plate is fitted to the interior wall finish, omitted below the finish floor.
AS SPECIFIED EXTERIOR CONCRETE WALL UNDERGROUND CONDUIT DAMPROOFING SEALER PER SPEC SECTION 07160 SEAL CONDUIT AND CABLE WITH SEALING COMPOUND PROVIDE METAL ESCUTHEON THAT MATCHES BUILDING STANDARD IN TYPE AND FINISH.(EXCEPT BELOW FINISH FLOOR)
