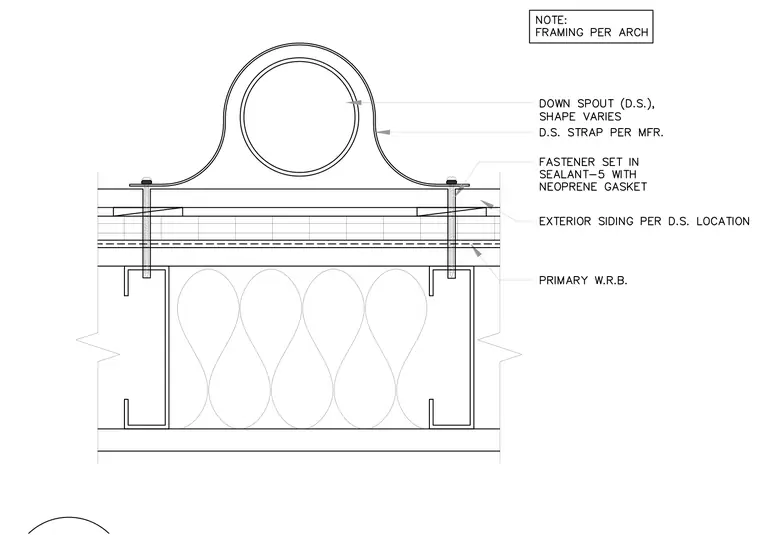

A downspout of varying shape is secured by a downspout strap per manufacturer requirements. Fasteners are set in sealant with a neoprene gasket, penetrating the exterior siding and primary weather-resistive barrier. The assembly anchors directly into the supporting exterior stud wall framing.
