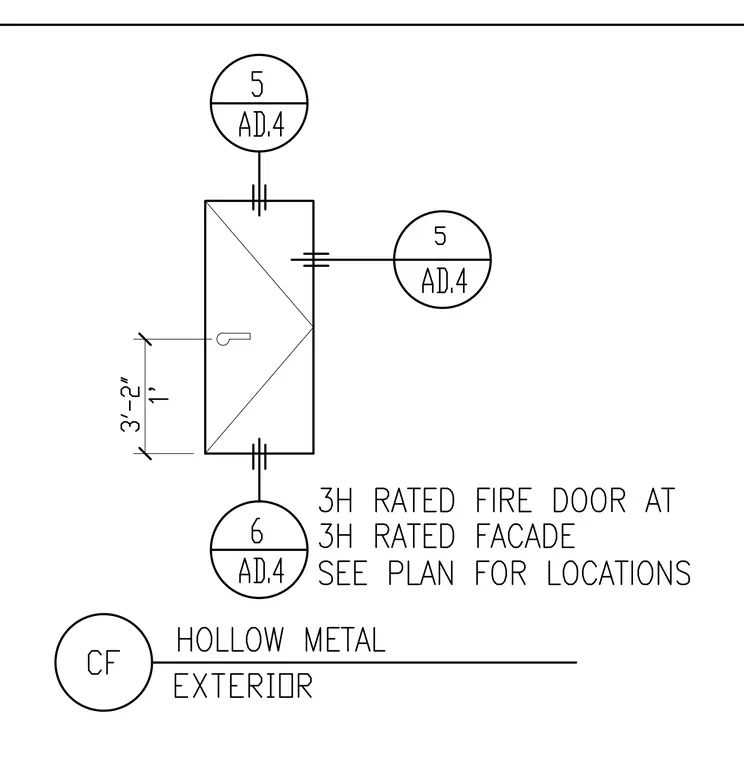

A three-hour rated hollow metal fire door is set within a three-hour rated facade, with locations sized per plan. Vertical dimensions locate the hardware at one foot and three feet two inches from the base. Detail callouts reference sheet AD.4 at the head, jamb, and sill connections. A material tag identifies the hollow metal exterior construction.
