Architectural · A-QTPPR

Parapet and Roof Edge Detail at Metal Stud Wall

Materials

Steel Cold-formed Steel Timber / Wood Metal (misc.)Gypsum / Drywall EIFS / Plaster / Stucco

Elements

Beams Walls Roofs Parapets Decks Waterproofing / Flashing Insulation

Connections

Shear Stud / Composite

About this detail

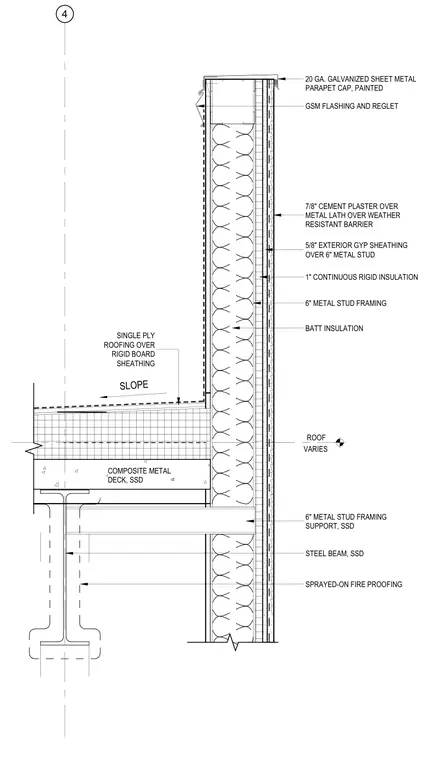

The parapet is capped with a twenty gauge galvanized sheet metal cap finished with paint, set above a galvanized sheet metal flashing and reglet. The exterior wall assembly consists of seven-eighths inch cement plaster over metal lath and a weather resistant barrier, supported by five-eighths inch exterior gypsum sheathing over six-inch metal stud framing filled with batt insulation and one-inch continuous rigid insulation. The roof assembly comprises a single ply roofing membrane over rigid board sheathing and continuous rigid insulation, sloped toward the interior over a composite metal deck with shear studs. The metal deck bears on a structural steel beam protected with sprayed-on fireproofing, anchored via metal stud framing supports.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
