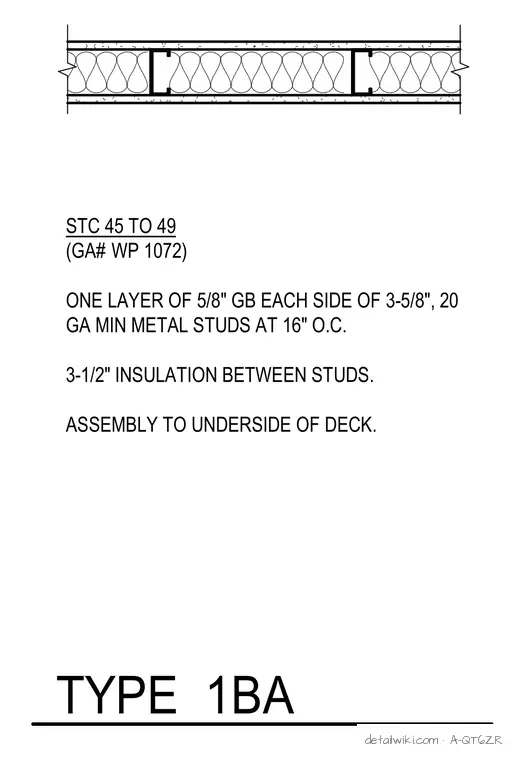

This interior partition assembly consists of three-and-five-eighths-inch, twenty-gauge minimum metal studs spaced at sixteen inches on center with three-and-a-half-inch insulation installed between the studs. One layer of five-eighths-inch gypsum board is applied to each side of the framing. The partition extends to the underside of the deck to achieve an STC rating of forty-five to forty-nine according to GA reference WP 1072.
STC 45 TO 49 (GA# WP 1072) ONE LAYER OF 5/8" GB EACH SIDE OF 3-5/8", 20 GA MIN METAL STUDS AT 16" O.C. 3-1/2" INSULATION BETWEEN STUDS. ASSEMBLY TO UNDERSIDE OF DECK. TYPE 1BA
