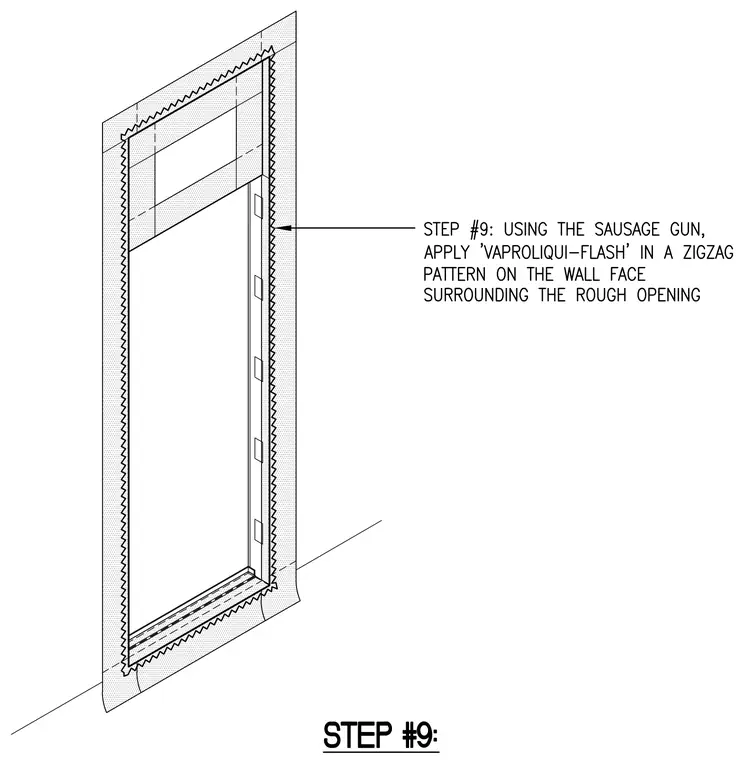

Liquid flashing is applied using a sausage gun in a zigzag pattern on the wall face surrounding the rough opening. The procedure is executed prior to window installation to maintain continuous weather-resistive barrier integrity.
