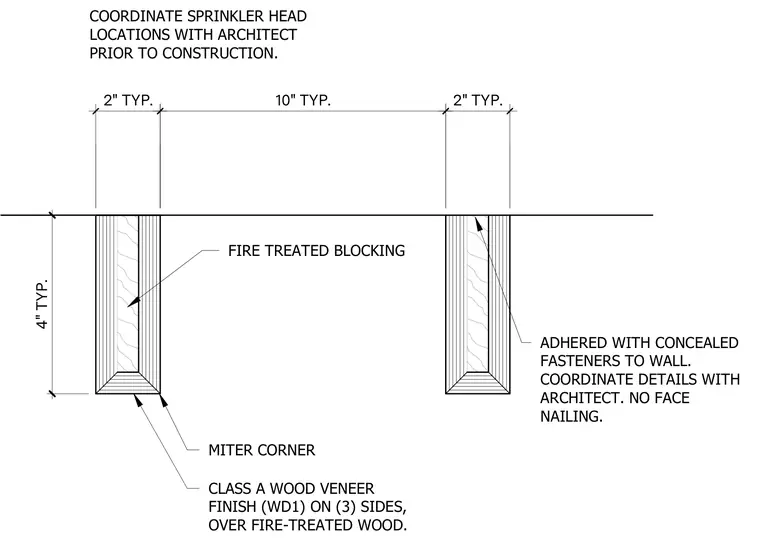

Class A wood veneer finish designated WD1 is applied to three sides over fire-treated wood blocking featuring mitered corners. The slats measure four inches deep by two inches wide with a ten-inch typical spacing. The assembly is adhered to the wall using concealed fasteners with no face nailing permitted. Sprinkler head locations must be coordinated with the architect prior to construction.
2" TYP. 10" TYP. 2" TYP. MITER CORNER FIRE TREATED BLOCKING CLASS A WOOD VENEER FINISH (WD1) ON (3) SIDES, OVER FIRE-TREATED WOOD. COORDINATE SPRINKLER HEAD LOCATIONS WITH ARCHITECT PRIOR TO CONSTRUCTION. 4" TYP. ADHERED WITH CONCEALED FASTENERS TO WALL. COORDINATE DETAILS WITH ARCHITECT. NO FACE NAILING.
