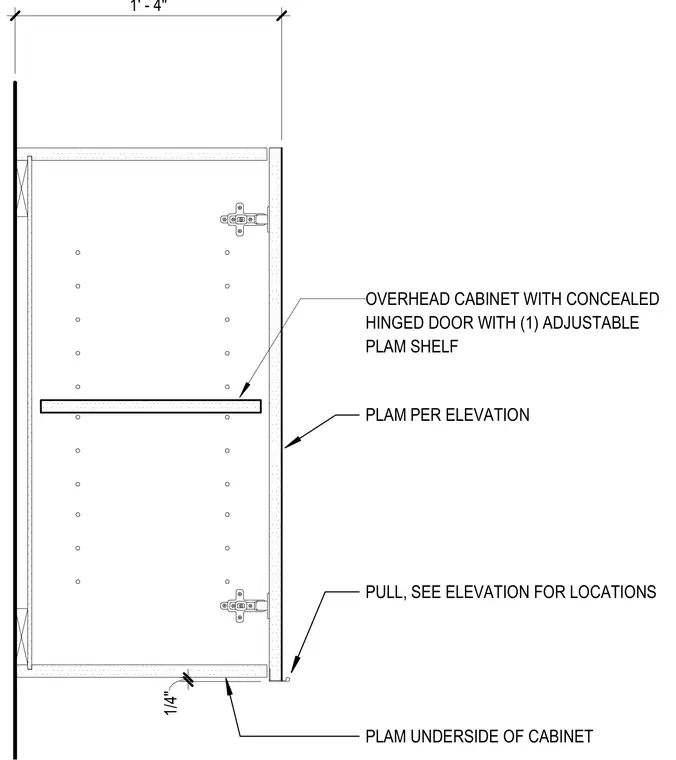

An overhead cabinet mounts to the wall and features a concealed hinged door with a pull handle located per the elevation. The interior includes one adjustable plastic laminate shelf supported on pin supports. Plastic laminate finish is applied to the exterior door and the underside of the cabinet with a thickness of one quarter inch. The cabinet depth spans one foot four inches.
OVERHEAD CABINET WITH CONCEALED HINGED DOOR WITH (1) ADJUSTABLE PLAM SHELF PLAM PER ELEVATION 1 ' - 4 " PULL, SEE ELEVATION FOR LOCATIONS PLAM UNDERSIDE OF CABINET 1 / 4 "
