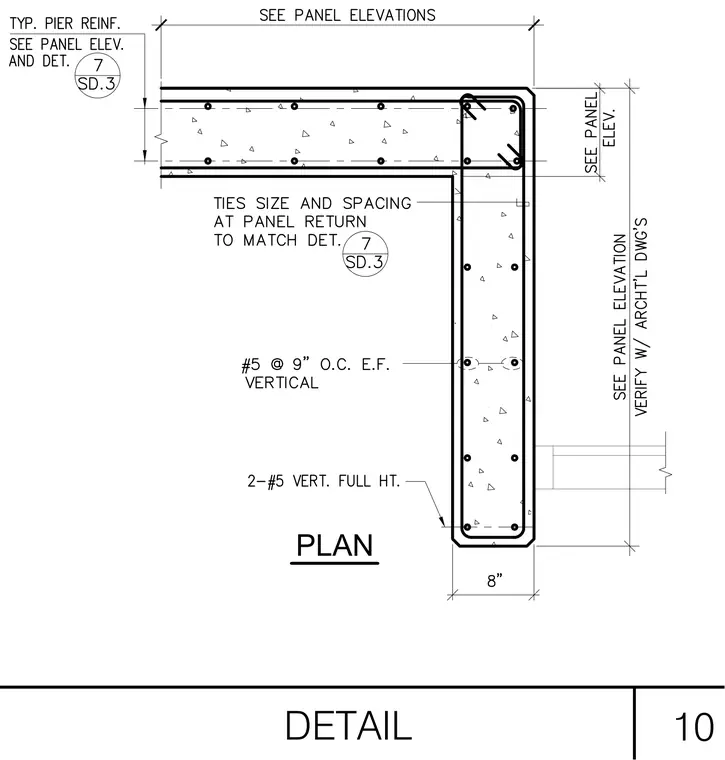

This plan detail shows an eight-inch concrete wall corner with vertical reinforcement consisting of number five bars at nine inches on center each face, and two number five vertical bars at full height. Ties size and spacing at the panel return match detail seven on sheet SD.3. Typical pier reinforcement is referenced to panel elevations and detail seven on sheet SD.3, with panel elevations verified against architectural drawings.
