Architectural · A-QSKM2

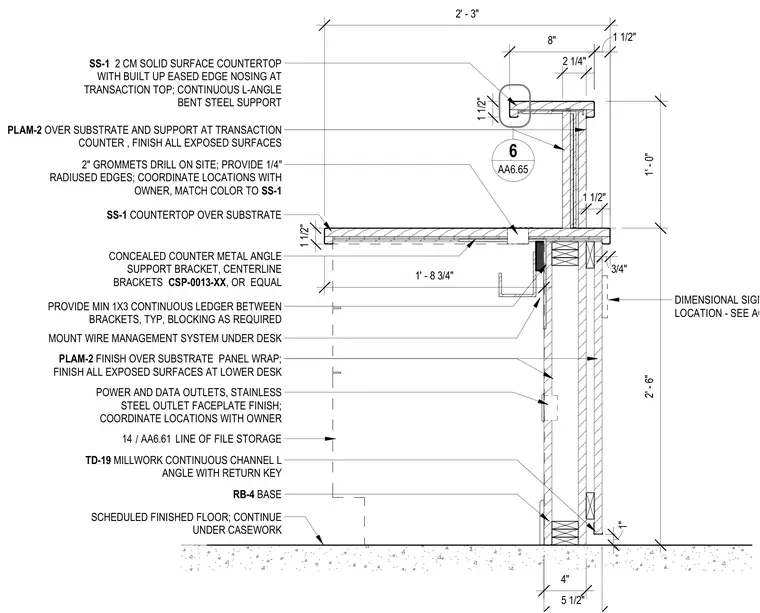

Reception Desk Work Surface Section with Transaction Counter

Materials

Steel Stainless Steel Timber / Wood Glass / Glazing Metal (misc.)

Elements

Stairs Floors / Slabs Millwork / Casework

About this detail

A reception desk assembly features a two-tier configuration with a lower work surface and an upper transaction counter. The upper transaction top consists of a 2-centimeter solid surface countertop with a built-in eased edge nosing, supported by a continuous 1 1/2-inch by 1 1/2-inch by 8-inch bent steel L-angle. Plastic laminate finish is applied over the substrate and support at the transaction counter with all exposed surfaces finished. The main desk work surface utilizes a solid surface countertop over a substrate, with 2-inch grommets drilled on site and 1/4-inch radiused edges matching the solid surface color. The desktop is supported by concealed metal angle brackets such as model CSP-0013-XX or equal, with a minimum 1x3 continuous ledger provided between brackets and additional blocking as required. A wire management system and a continuous channel L-angle with return key are mounted under the desk. The vertical knee space and face panels are wrapped with plastic laminate finish over substrate, incorporating power and data outlets with stainless steel faceplates. The base features an RB-4 wall base running continuously over the scheduled finished floor.
