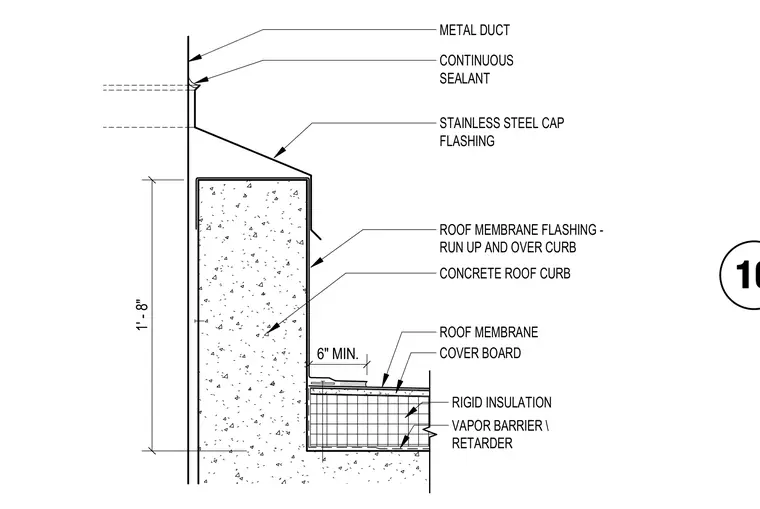

A metal duct penetrates a concrete roof curb with a stainless steel cap flashing sealed at the duct wall by a continuous bead of sealant. The stainless steel cap flashing slopes down over the top of the concrete roof curb, where the roof membrane flashing runs up and over the curb with a six-inch minimum lap. The roof assembly consists of a roof membrane, cover board, rigid insulation, and a vapor retarder supported over the deck structure.
METAL DUCT STAINLESS STEEL CAP FLASHING CONTINUOUS SEALANT ROOF MEMBRANE FLASHING - RUN UP AND OVER CURB CONCRETE ROOF CURB ROOF MEMBRANE COVER BOARD RIGID INSULATION VAPOR BARRIER \ RETARDER 6" MIN. 1' - 8" 10
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
