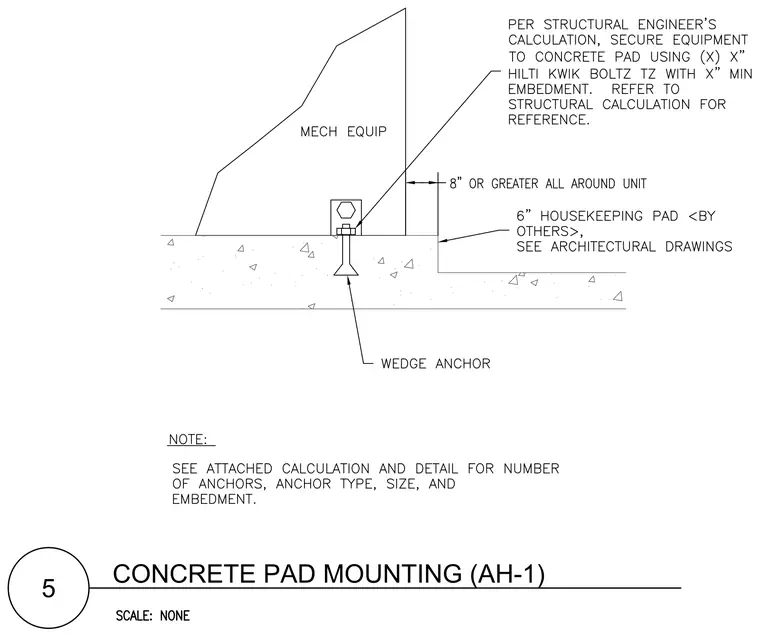

Mechanical equipment is secured to a six-inch concrete housekeeping pad using wedge anchors such as Hilti Kwik Boltz TZ with a specified minimum embedment per structural calculations. The concrete pad extends eight inches or greater all around the unit. Anchor size, type, number, and embedment are determined by structural calculations.
