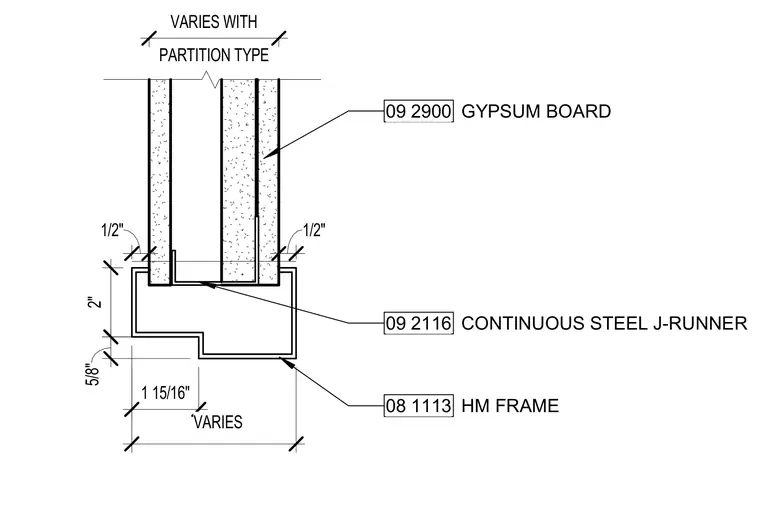

A hollow metal frame connects to a continuous steel J-runner at the partition head. Gypsum board layers finish both sides of the assembly, with thicknesses and dimensions varying according to the partition type.
PARTITION TYPE VARIES WITH 1/2" 1/2" 2" 5/8" 1 15/16" 09 2116 CONTINUOUS STEEL J-RUNNER 08 1113 HM FRAME 09 2900 GYPSUM BOARD VARIES
