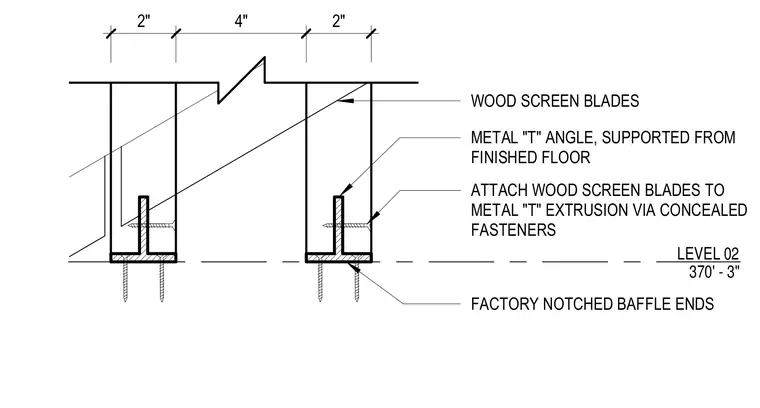

Wood screen blades feature factory-notched baffle ends that fit over metal tee angles supported directly from the finished floor at Level 02. The wood blades attach to the metal tee extrusion using concealed fasteners. Spacing dimensions of two inches, four inches, and two inches govern the baffle layout.
LEVEL 02 370' - 3" WOOD SCREEN BLADES METAL "T" ANGLE, SUPPORTED FROM FINISHED FLOOR ATTACH WOOD SCREEN BLADES TO METAL "T" EXTRUSION VIA CONCEALED FASTENERS FACTORY NOTCHED BAFFLE ENDS 2" 4" 2"
