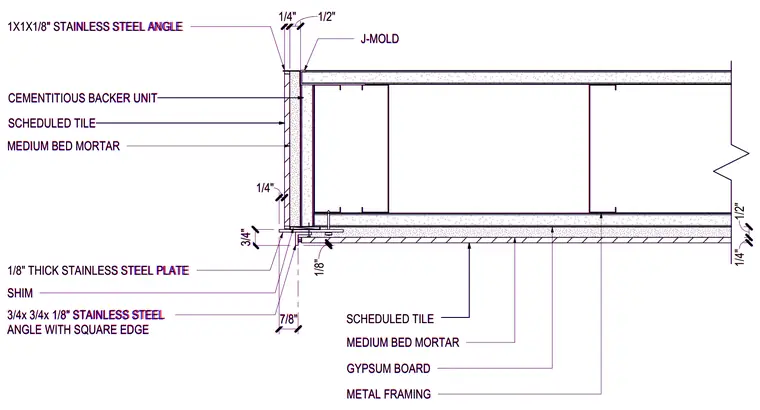

A tiled pony wall corner is constructed with metal framing and a layer of gypsum board. The exterior face is finished with a cementitious backer unit set behind scheduled tile installed with medium bed mortar. A one-by-one by one-eighth inch stainless steel angle frames the outside corner, while a three-quarter by three-quarter by one-eighth inch stainless steel angle with a square edge and an eighth-inch thick stainless steel plate detail the return alongside shims and a J-mold.
SCHEDULED TILE MEDIUM BED MORTAR SCHEDULED TILE MEDIUM BED MORTAR METAL FRAMING 1X1X1/8" STAINLESS STEEL ANGLE GYPSUM BOARD 3/4x 3/4x 1/8" STAINLESS STEEL ANGLE WITH SQUARE EDGE 1/4" 1/2" 1/4" 1/2" CEMENTITIOUS BACKER UNIT 1/8" THICK STAINLESS STEEL PLATE 1/8" 1/4" 3/4" 7/8" SHIM J-MOLD SCHEDULED TILE MEDIUM BED MORTAR SCHEDULED TILE MEDIUM BED MORTAR METAL FRAMING 1X1X1/8" STAINLESS STEEL ANGLE GYPSUM BOARD 3/4x 3/4x 1/8" STAINLESS STEEL ANGLE WITH SQUARE EDGE 1/4" 1/2" 1/4" 1/2" CEMENTITIOUS BACKER UNIT 1/8" THICK STAINLESS STEEL PLATE 1/8" 1/4" 3/4" 7/8" SHIM J-MOLD
