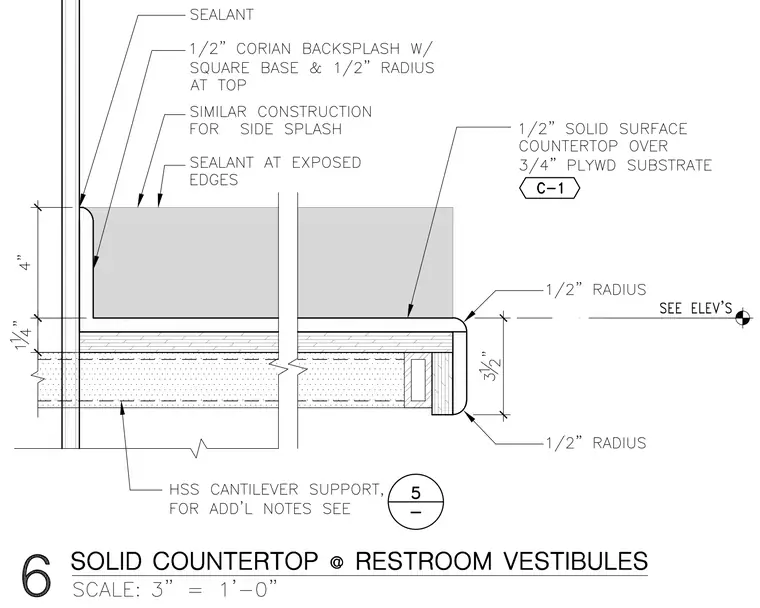

A one-half inch solid surface countertop sits over a three-quarter inch plywood substrate, supported by a hollow structural section cantilever. A one-half inch Corian backsplash with a square base and a one-half inch radius at the top connects to the vertical surface with sealant, and similar construction applies to the side splash with sealant at exposed edges. The front edge features a one-half inch radius profile.
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
