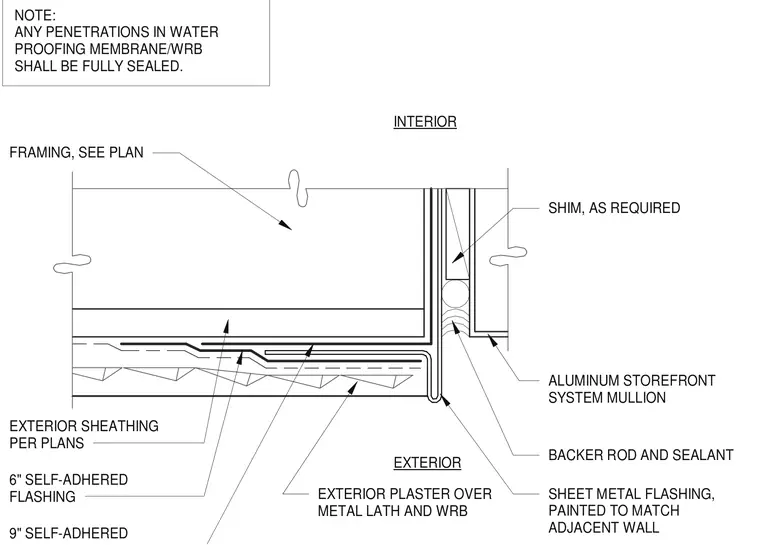

An aluminum storefront system mullion ties into exterior framing and sheathing, supported by adjustable shims as required. Exterior plaster over metal lath and weather-resistant barrier finishes the wall assembly adjacent to the opening. A sheet metal flashing, painted to match the adjacent wall, wraps the rough opening and integrates with six-inch and nine-inch self-adhered flashing membranes over the exterior sheathing. A backer rod and sealant joint seals the gap between the aluminum mullion and the perimeter flashing.
SHIM, AS REQUIRED EXTERIOR PLASTER OVER METAL LATH AND WRB BACKER ROD AND SEALANT SHEET METAL FLASHING, PAINTED TO MATCH ADJACENT WALL NOTE: ANY PENETRATIONS IN WATER PROOFING MEMBRANE/WRB SHALL BE FULLY SEALED. ALUMINUM STOREFRONT SYSTEM MULLION EXTERIOR SHEATHING PER PLANS 9" SELF-ADHERED INTERIOR EXTERIOR FRAMING, SEE PLAN 6" SELF-ADHERED FLASHING
