A rated door frame with a 60-minute Underwriters Laboratories rating secures a door featuring a tight-fitting smoke and draft control assembly. The head condition utilizes a metal track nested with a 3-5/8 inch cold-formed metal stud, flanked on each side by 5/8 inch Type X gypsum board over metal studs sized per the structural schedule. Insulation is provided within the stud cavity where required. A 1/2 inch clearance is maintained at the rough opening.

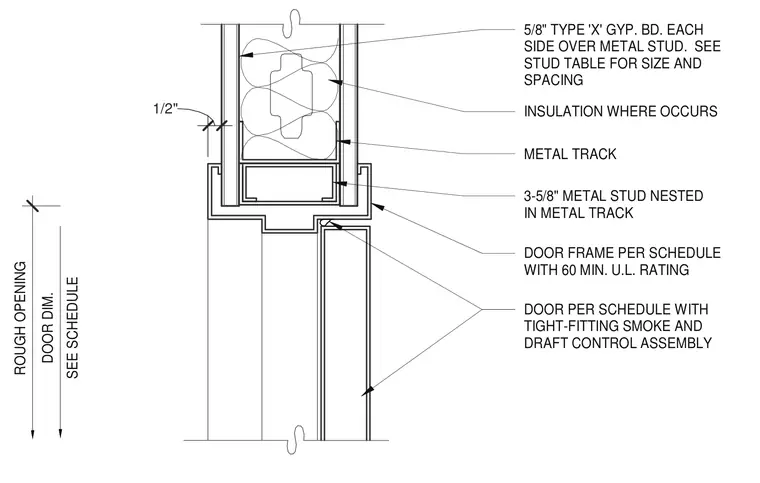

3-5/8" METAL STUD NESTED IN METAL TRACK METAL TRACK 5/8" TYPE 'X' GYP. BD. EACH SIDE OVER METAL STUD. SEE STUD TABLE FOR SIZE AND SPACING INSULATION WHERE OCCURS DOOR FRAME PER SCHEDULE WITH 60 MIN. U.L. RATING DOOR PER SCHEDULE WITH TIGHT-FITTING SMOKE AND DRAFT CONTROL ASSEMBLY DOOR DIM. SEE SCHEDULE ROUGH OPENING 1/2"
