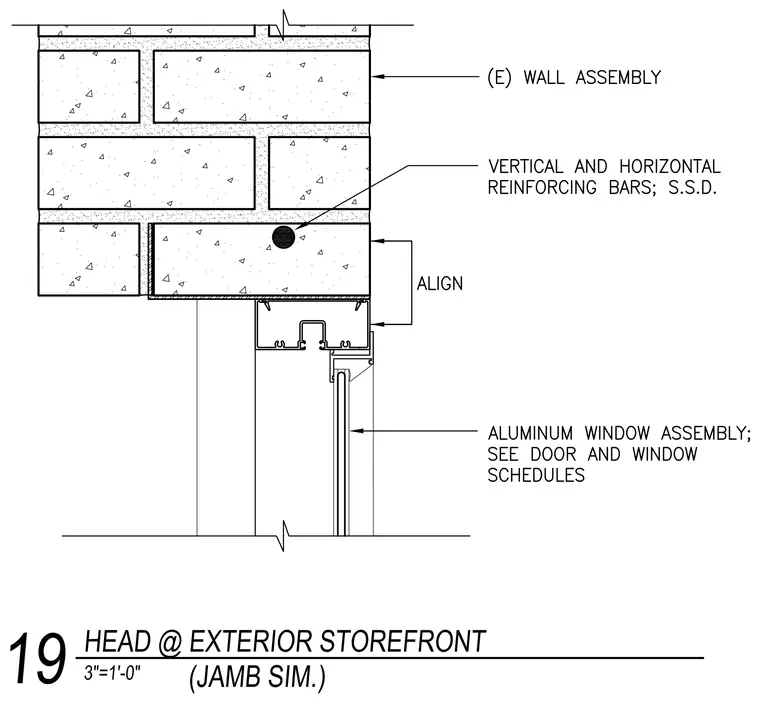

An aluminum window assembly is installed below an existing wall assembly containing vertical and horizontal reinforcing bars. The head of the exterior storefront aligns with the masonry course as indicated on the drawing. The aluminum window assembly is sized per the door and window schedules.
