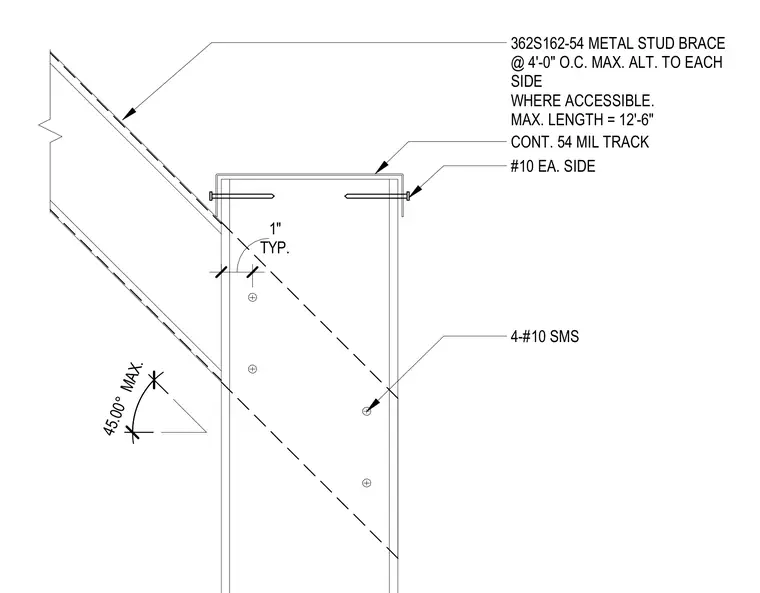

A 362S162-54 cold-formed metal stud brace connects to the top track at a maximum 45-degree angle. The brace is spaced at four feet on center maximum and alternated to each side where accessible, with a maximum length of twelve feet and six inches. A continuous fifty-four mil track caps the assembly, secured with number ten sheet metal screws on each side. Four number ten sheet metal screws fasten the intersecting members together.
362S162-54 METAL STUD BRACE @ 4'-0" O.C. MAX. ALT. TO EACH SIDE WHERE ACCESSIBLE. MAX. LENGTH = 12'-6" TYP. 1" 45.00° MAX. CONT. 54 MIL TRACK #10 EA. SIDE 4-#10 SMS
