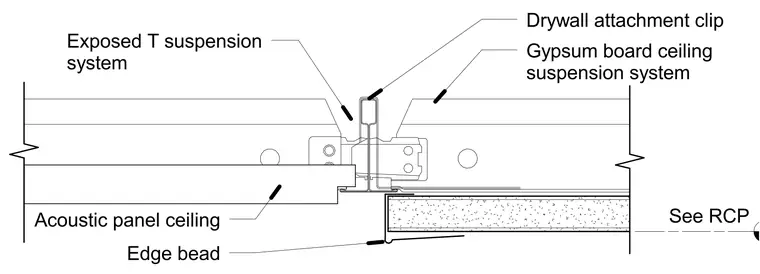

A transition connects a suspended gypsum board ceiling and an acoustic panel ceiling system. An exposed tee suspension system supports both ceiling types, utilizing a drywall attachment clip to secure the gypsum board ceiling suspension system. An edge bead finishes the gypsum board termination adjacent to the acoustic panel ceiling as sized per the reflected ceiling plan.
Acoustic panel ceiling Drywall attachment clip Gypsum board ceiling suspension system Edge bead See RCP Exposed T suspension system
