Architectural · A-QQQES

Accessible Parking Stall and Access Aisle Layout

Materials

Elements

About this detail

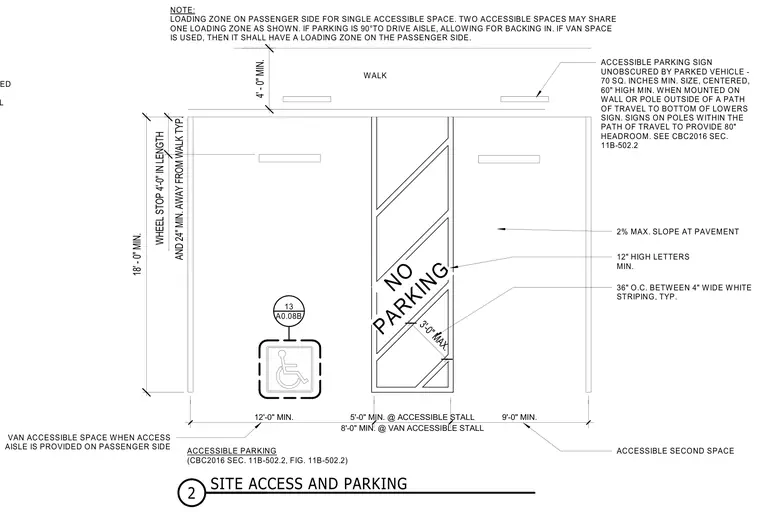

An accessible parking space layout requires a minimum stall width of nine feet alongside an access aisle measuring five feet minimum for standard accessible stalls and eight feet minimum for van accessible stalls, spanning an 18-foot minimum stall length. The access aisle features 12-inch high NO PARKING letters spaced 36 inches on center between four-inch wide white striping typical, placed 24 inches minimum away from the adjacent walkway. A four-foot long wheel stop is positioned at the head of the stall, three feet maximum from the walk. Accessible parking signs must measure 70 square inches minimum, centered and mounted 60 inches high minimum to the bottom of the lower sign when placed on a wall or pole outside of a path of travel, or providing 80 inches of headroom when mounted on poles within a path of travel per CBC2016 Section 11B-502.2. A two percent maximum slope is required at the pavement within the parking and loading zone areas.
