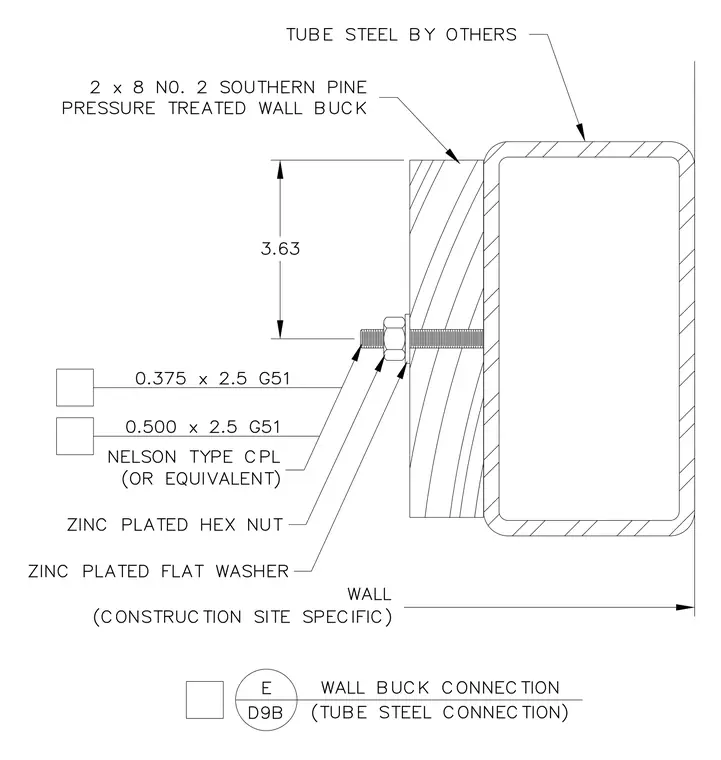

A 2x8 Number 2 Southern Pine pressure-treated wall buck is secured to a hollow structural section steel tube by others. A threaded stud with a Nelson type CPL coupling or equivalent is welded to the steel tube, extending through the wood member. The assembly is fastened using a zinc plated flat washer and a zinc plated hex nut.
2 x 8 N0. 2 SOUTHERN PINE PRESSURE TREATED WALL BUCK 3.63 NELSON TYPE CPL (OR EQUIVALENT) ZINC PLATED HEX NUT ZINC PLATED FLAT WASHER 0.500 x 2.5 G51 0.375 x 2.5 G51 WALL (CONSTRUCTION SITE SPECIFIC) TUBE STEEL BY OTHERS WALL BUCK CONNECTION E D9B (TUBE STEEL CONNECTION)
