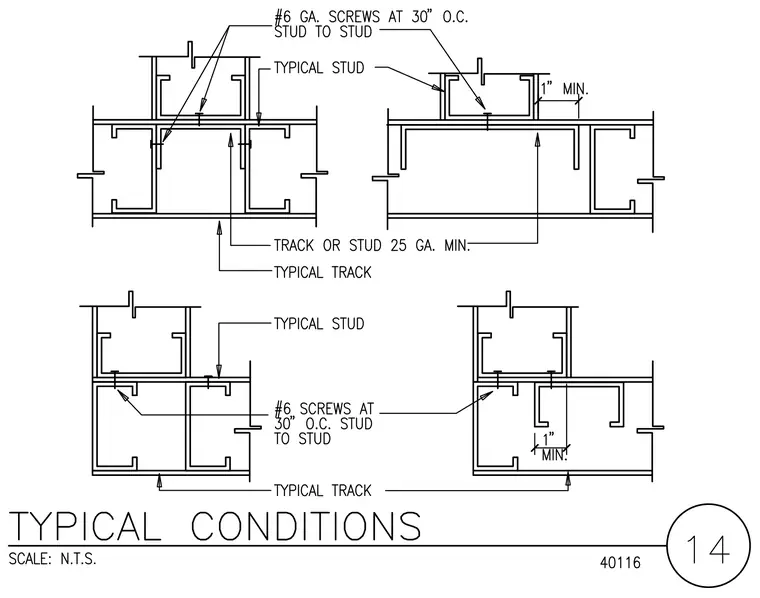

Cold-formed steel framing details show typical wall intersections and corners constructed with light gauge steel studs and tracks. Studs are secured to tracks using twenty-five gauge minimum members with number six screws spaced at thirty inches on center from stud to stud. Details specify a one inch minimum clearance or overlap dimension for specific framing layouts.
