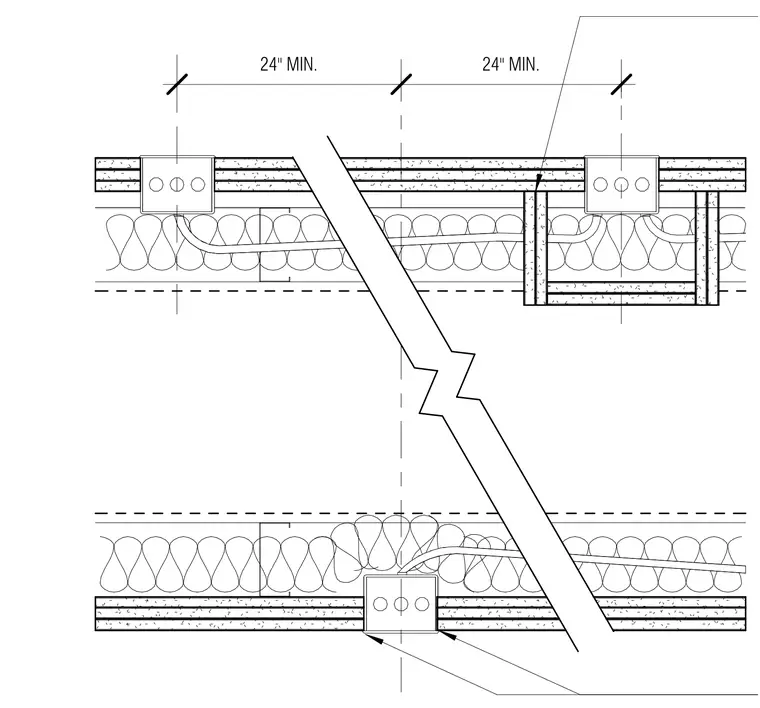

Acoustic treatment surrounds electrical outlets within a single stud wall construction. Electrical boxes are installed with a minimum separation of twenty-four inches. Sound insulation batts fill the stud cavity between gypsum board layers on both sides of the wall assembly.
24" MIN. 24" MIN.
