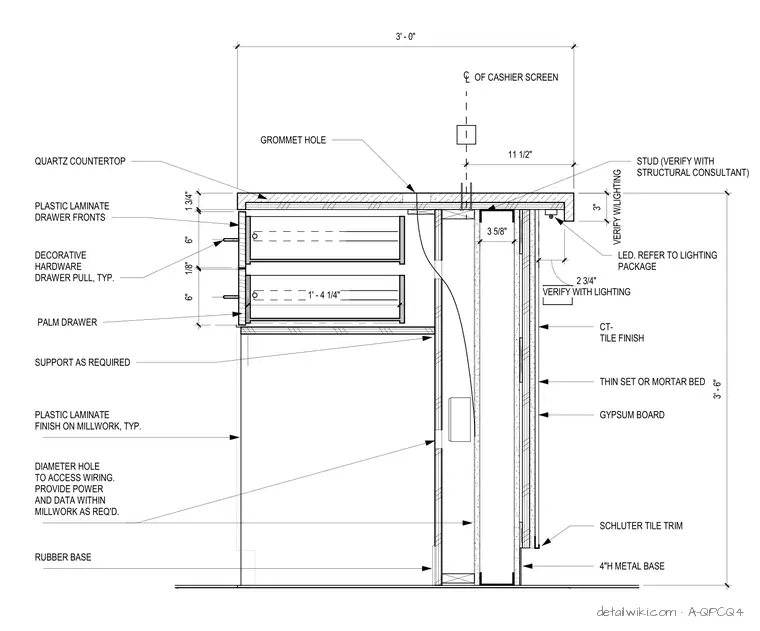

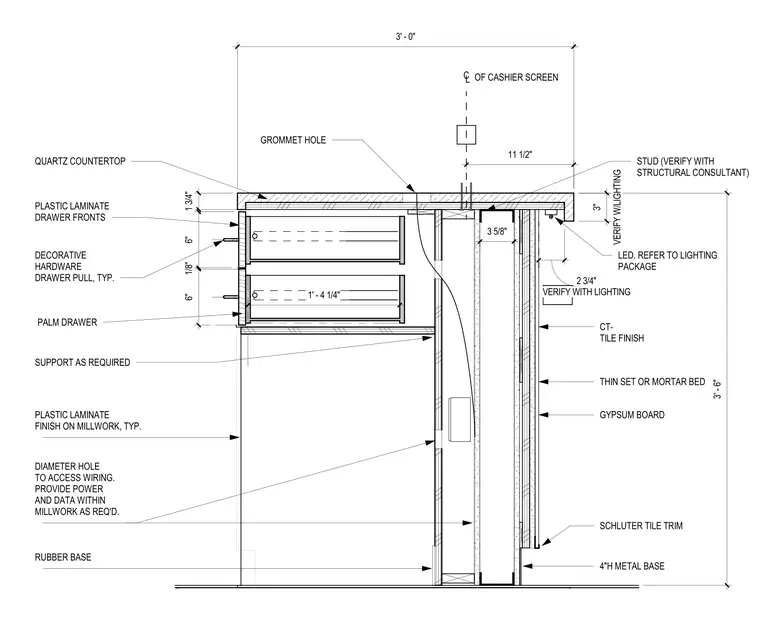

This cashier counter assembly consists of a quartz countertop supported by a millwork cabinet with plastic laminate drawer fronts and decorative hardware. The counter is anchored to a central partition wall constructed of metal studs, finished with gypsum board, a thin set or mortar bed, and tile. A four-inch metal base and rubber base provide the floor-level finish. The millwork includes a grommet hole for cable management and a diameter hole for accessing power and data wiring. An LED light fixture is recessed beneath the counter overhang, with dimensions to be verified against the lighting package. The structural stud support for the counter should be verified with the structural consultant.
