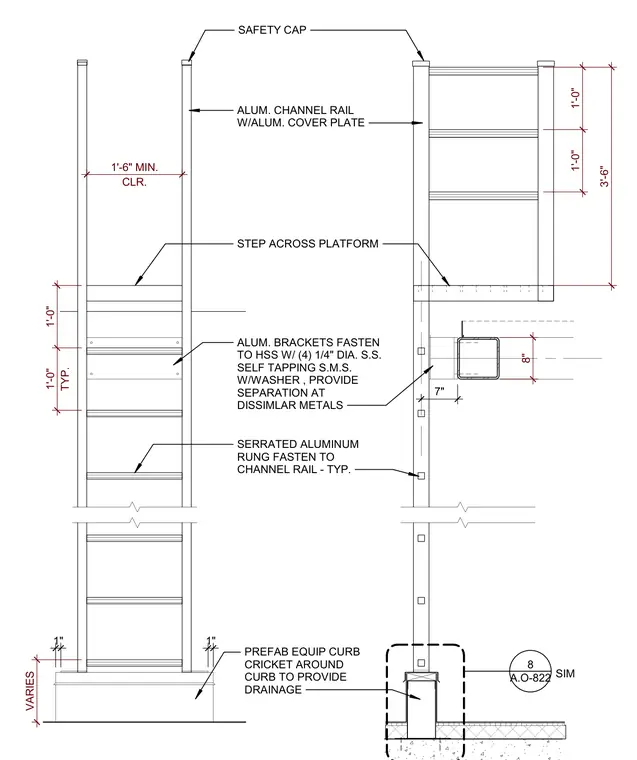

An aluminum access ladder features serrated aluminum rungs fastened to aluminum channel side rails with aluminum cover plates and a top safety cap. The ladder mounts to an HSS structural support via aluminum brackets secured with four quarter-inch diameter stainless steel self-tapping sheet metal screws with washers, with required separation provided at dissimilar metals. The upper portion includes a step-across platform with a safety channel rail system standing three feet six inches high. The base of the ladder assembly sets over a prefabricated equipment curb with a drainage cricket.
8" 3'-6" 1'-0" 1'-0" SAFETY CAP ALUM. CHANNEL RAIL W/ALUM. COVER PLATE STEP ACROSS PLATFORM SERRATED ALUMINUM RUNG FASTEN TO CHANNEL RAIL - TYP. ALUM. BRACKETS FASTEN TO HSS W/ (4) 1/4" DIA. S.S. SELF TAPPING S.M.S. W/WASHER , PROVIDE SEPARATION AT DISSIMLAR METALS TYP. 1'-0" 1'-0" VARIES CLR. 1'-6" MIN. 7" A.O-822 8 1" 1" PREFAB EQUIP CURB CRICKET AROUND CURB TO PROVIDE DRAINAGE SIM
