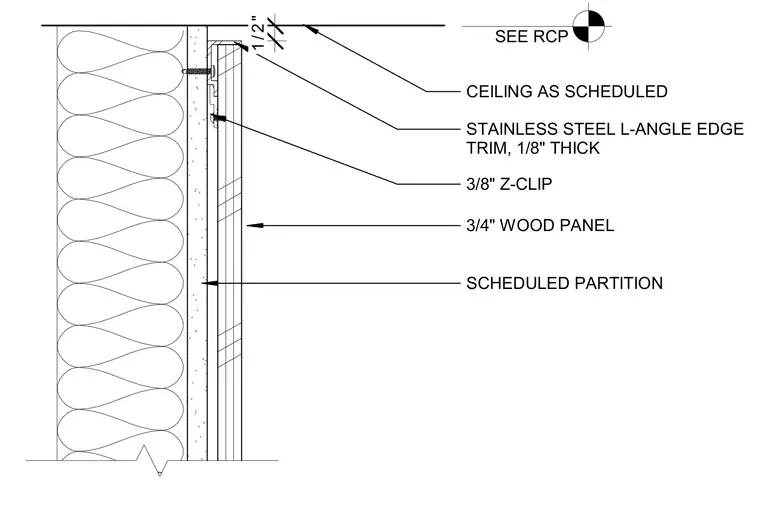

The wood wall head assembly mounts a three-quarter-inch wood panel to a scheduled partition using a three-eighth-inch Z-clip secured to the backing. A one-eighth-inch thick stainless steel L-angle edge trim finishes the top of the wood panel and provides a clean joint detail below the scheduled ceiling. A half-inch clearance separates the top of the wood panel assembly from the ceiling line, referenced to the reflected ceiling plan.
SCHEDULED PARTITION 3/4" WOOD PANEL SEE RCP CEILING AS SCHEDULED 3/8" Z-CLIP STAINLESS STEEL L-ANGLE EDGE TRIM, 1/8" THICK 1/ 2"
Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
