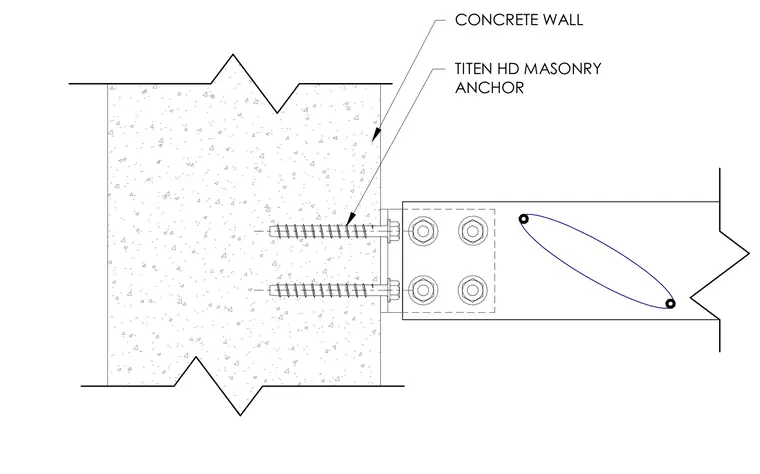

A sunshade arm connects to a concrete wall utilizing threaded heavy-duty masonry anchors. A mounting plate is secured directly to the face of the concrete substrate with the mechanical anchors.
