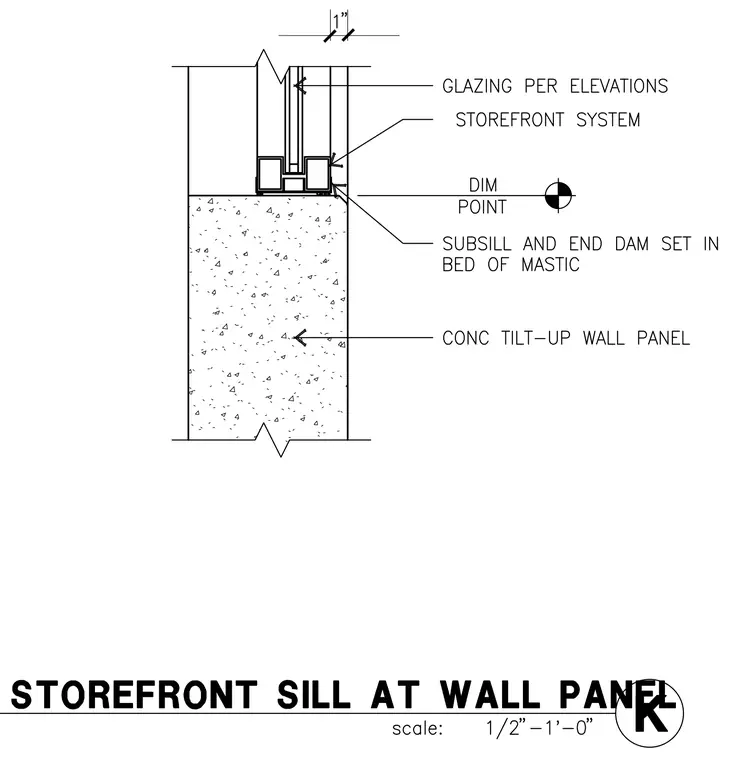

A storefront system bears on a concrete tilt-up wall panel at the sill condition. The subsill and end dam are set in a continuous bed of mastic over the concrete substrate. Glazing is installed per the exterior elevations within the aluminum storefront frame. A dimension point aligns the storefront edge relative to the wall panel below.
