Architectural · A-QNVWF

Curtain Wall Canopy and Parapet Section

Materials

Steel Cold-formed Steel Glass / Glazing Metal (misc.)EIFS / Plaster / Stucco Membrane / Roofing

Elements

Beams Walls Curtain Walls Facades / Cladding Roofs Parapets Canopies Decks Waterproofing / Flashing Insulation Connections / Plates

About this detail

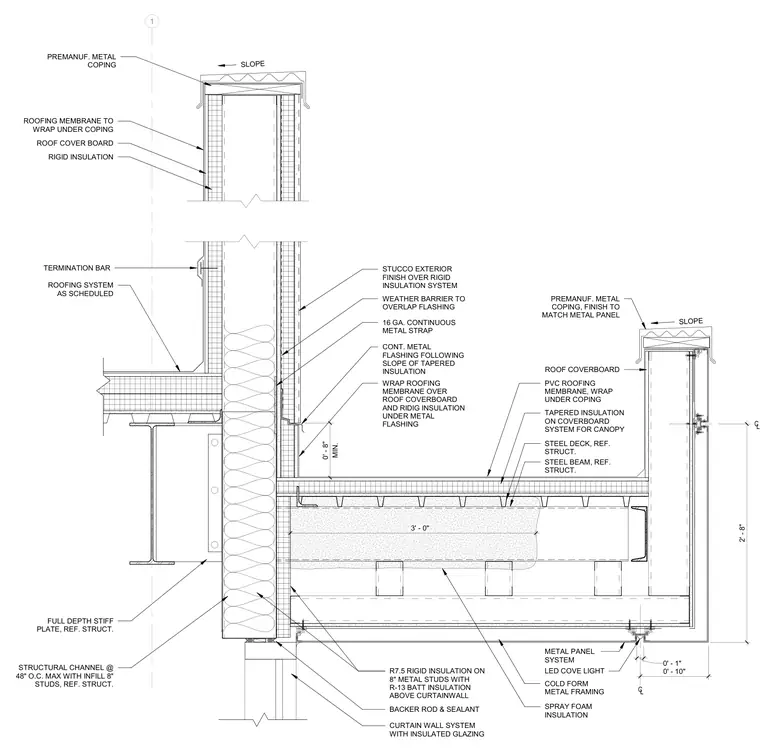

This wall and roof section details the junction between a parapet wall, a canopy roof, and an upper curtain wall system. The parapet wall consists of a premanufactured metal coping over a roof coverboard, rigid insulation, and a roofing membrane that wraps under the coping, secured with a termination bar. The canopy is framed with structural steel beams and steel deck supporting tapered insulation over a coverboard, finished with a PVC roofing membrane. Cold-formed metal framing and structural channels at forty-eight inches on center with infill studs support the exterior stucco finish over a rigid insulation system and weather barrier. A continuous sixteen-gauge metal strap ties the assembly together alongside flashing that follows the slope of the tapered insulation. Below the canopy, an LED cove light and metal panel system integrate with the curtain wall featuring insulated glazing, R-7.5 rigid insulation, eight-inch metal studs with R-13 batt insulation, backer rod, and sealant.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
